CNC Machining Precision Flange
TyCNCparts covers outer diameters φ20–φ500 mm. We hold bolt-hole positional tolerance to ±0.01 mm and sealing surface flatness down to 0.005 mm for vacuum, connection and spindle flanges.
Capability
Our Flange Machining Capabilities

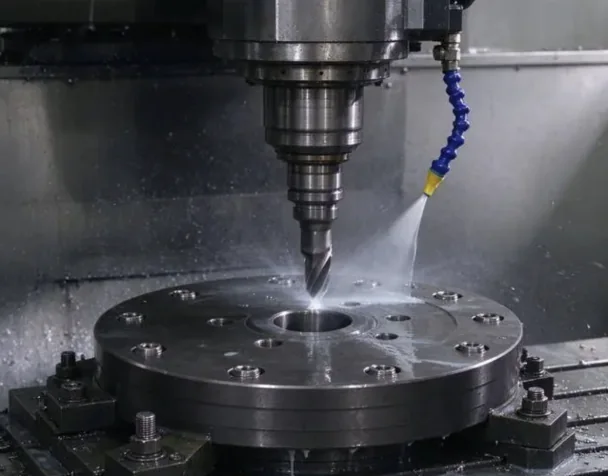

TyCNCparts mainly uses CNC machining centers and turn-milling for precision flanges. For flanges requiring high flatness on sealing surfaces and datum end faces, such as vacuum and sealing flanges, we also perform surface grinding to support sealing performance.
Learn Turn-Mill MachiningProcesses
Machining Processes
TyCNCparts support manufacturing high-performance flanges with good critical features like sealing faces, holes, special grooves, pilot register through the following machining processes.
CNC Milling
Profiles, bolt holes, countersunk holes, through holes, threaded holes and dowel pin holes.
Turn-Milling
Single setup for OD/ID, end faces and hole features; preferred for high-precision flanges.
Surface Grinding
For high-flatness sealing surfaces and datum end faces.
Boring
Precision finishing of inner bores.
Tapping
Threaded-hole machining.
Accuracy
Accuracy Capabilities
| Item | Parameter / Description |
|---|---|
| Flatness (Sealing Flange) | 0.005–0.02 mm |
| Perpendicularity | End face relative to inner bore / outer diameter datum |
| Bolt Hole Positional Tolerance | ±0.01–0.03 mm |
| Dimensional Tolerance | ±0.01–±0.03 mm |
| Surface Roughness (Turning) | Ra 1.6 μm |
| Surface Roughness (Ground Sealing Surface) | Ra 0.4–0.8 μm |
| Spigot Concentricity | Guaranteed per drawing |
Range
Machining Specifications
| Item | Parameter / Description |
|---|---|
| Outer Diameter Range | φ20–φ500 mm |
| Thickness Range | 3–80 mm |
| Batch Range | Single prototype to small / medium batches |
| Lead Time | Quotation within 48 hours |
Types
Types of Flanges
Industrial flanges always need customization because of irregular shapes, demanding performance, and higher tolerance requirements. TyCNCparts support low-to-medium production of flanges.

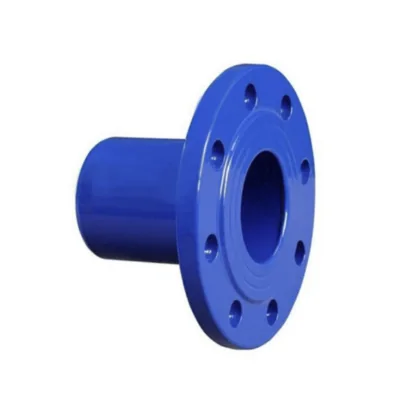

Spigot Flange

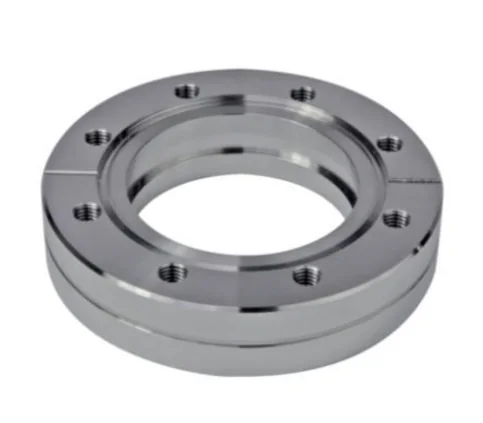

Vacuum Flange

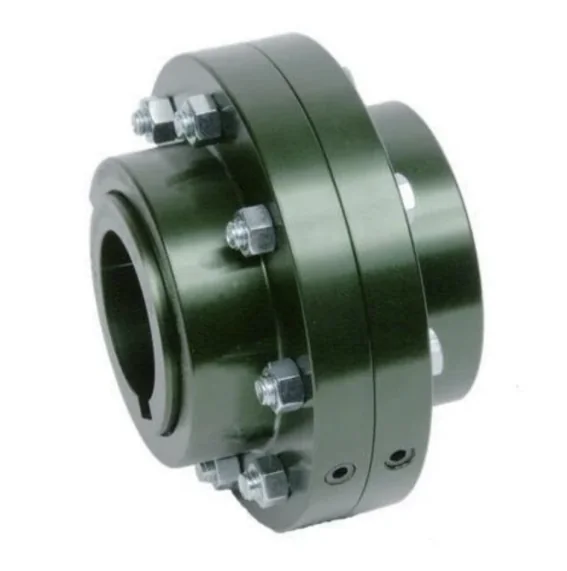

Coupling Flange

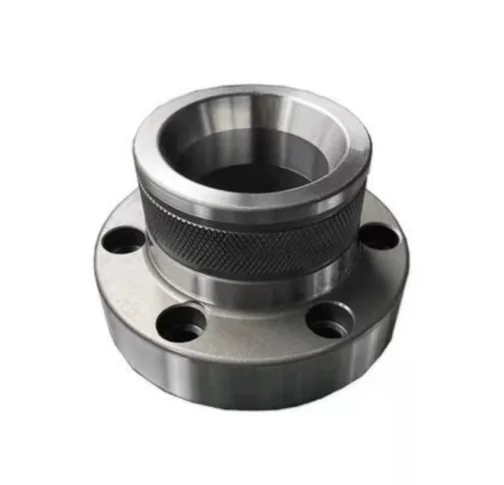

Spindle Flange

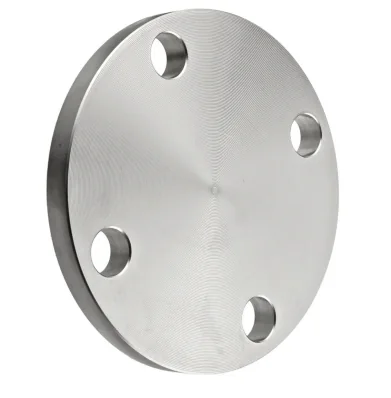

Blind Flange

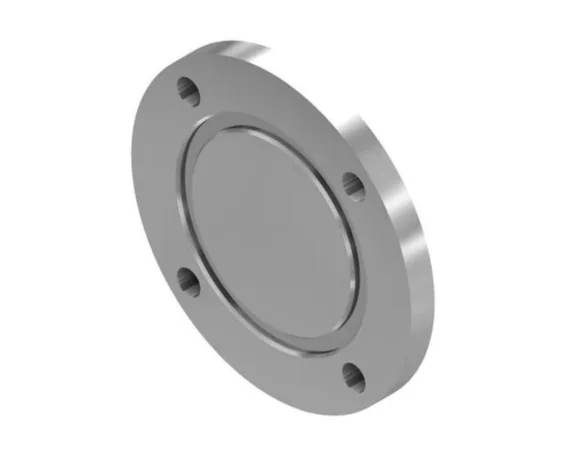

O-ring Groove Flange
