CNC Milling
Cavities, thin walls, mounting bosses, through holes, threaded holes, countersunk holes and dowel pin holes.
Custom Parts
Custom CNC Precision Enclosures
TyCNCparts specializes in instrument, sensor and automation-control housings.
- Max dimension: 1200 × 800 × 400 mm
- Surface flatness up to 0.01 mm
- Minimum wall thickness: 0.8 mm
Capability
Our Enclosure Machining Capabilities

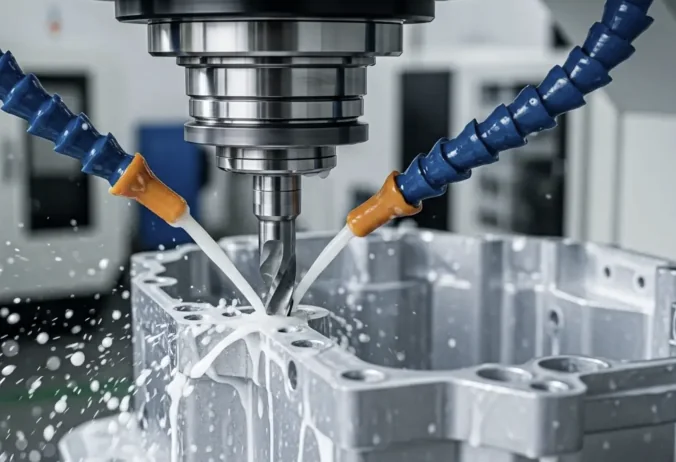

TyCNCparts mainly uses 3-axis and 4-axis machining centers for precision enclosure production. We maintain mating-surface flatness and hole-position accuracy for thin-wall, deep-cavity structures. For sealed enclosures, we machine O-ring grooves and split upper/lower mating surfaces. Surface grinding can be applied to assembly datums to support sealing and EMC shielding performance.
CNC Machining ServiceProcesses
Our Machining Capabilities
TyCNCparts’s CNC machining service is very suitable for low-volume production of enclosures that have high requirements for tolerance accuracy, sealing performance, complex inner features.
Turn-Milling
Round enclosures and integrated housings with flanges.
Surface Grinding
Upper and lower assembly datum surfaces to maintain mating-surface flatness.
Boring
Precision locating holes.
Tapping
Threaded-hole machining.
Accuracy
Accuracy Capabilities
| Item | Parameter / Description |
|---|---|
| Flatness of Assembly Datum Surface | 0.01–0.03 mm |
| Hole Positional Tolerance | Dowel pin and mounting holes ±0.01–0.03 mm |
| Perpendicularity / Parallelism | Guaranteed per drawing |
| Dimensional Tolerance (Thin-Wall Parts) | ±0.02–0.05 mm |
| Surface Roughness (Assembly Mating Surface) | Ra 1.6 μm |
| Surface Roughness (Standard Cavity) | Ra 3.2 μm |
Range
Machining Specifications
| Item | Parameter / Description |
|---|---|
| Max Overall Dimension | 500 × 400 × 200 mm typical capability; larger parts reviewed against machine envelope |
| Typical Structures | Thin-wall instrument cavities, sealed housings with O-ring grooves, EMC shielding enclosures, split upper/lower housings |
| Additional Features | Mounting bosses, dowel pin holes, cable-routing grooves, heat-dissipation ribs |
| Batch Size Range | Single prototype to small / medium batches |
| Lead Time | Quotation within 48 hours |
Materials
Materials for Custom Enclosures
TyCNCparts helped our customers achieve precision mating, good heat distribution, EMI shielding, sealing performance and good structural rigidity.

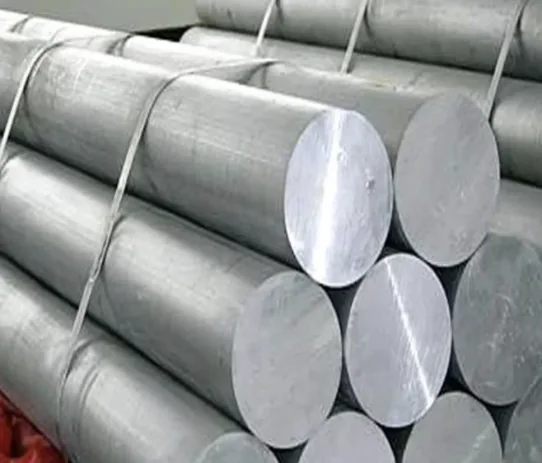

Aluminum 6061 / 6063 / 7075
Lightweight and well suited to anodizing.

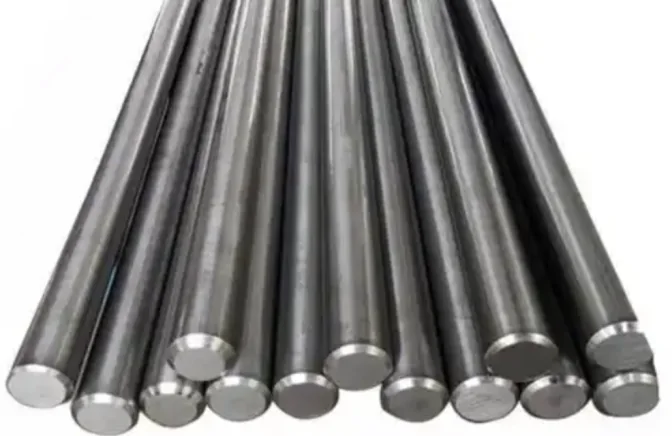

Carbon Steel
For heavy-duty housings.

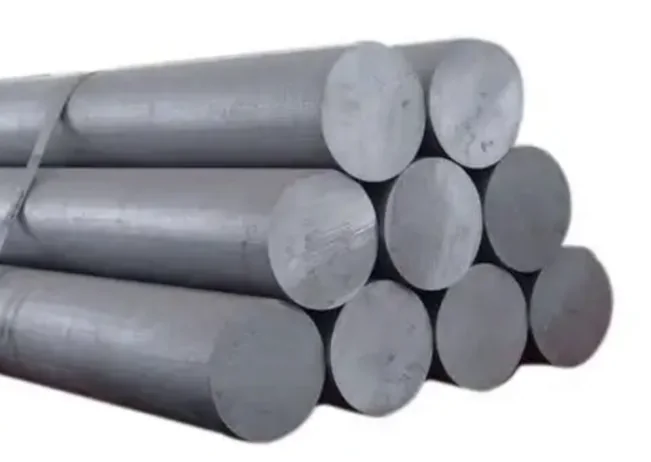

Stainless Steel 304 / 316L
For corrosion-resistant enclosures.

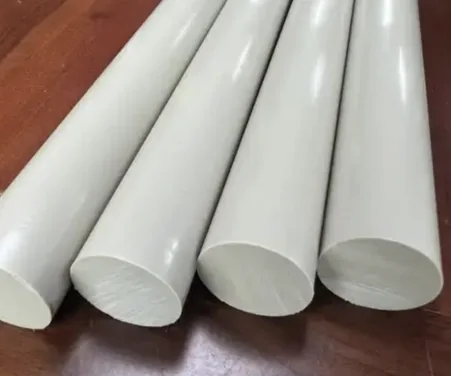

Engineering Plastics
PC, POM and PEEK.
Applications
Applications of Enclosures
TyCNCparts are trusted by our customers from automation, aerospace, medical, and automotive electronics because we provide reliable CNC machining services for enclosure customization.

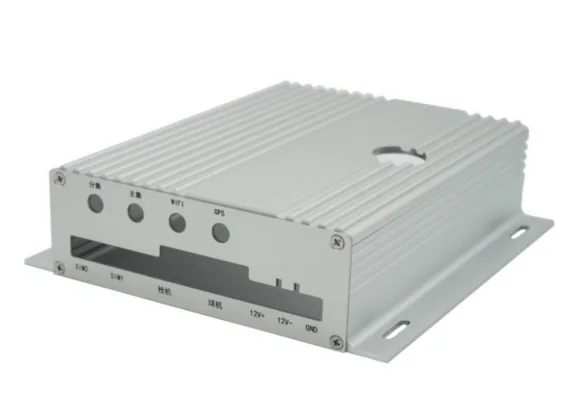

Precision Test Instrument Housings

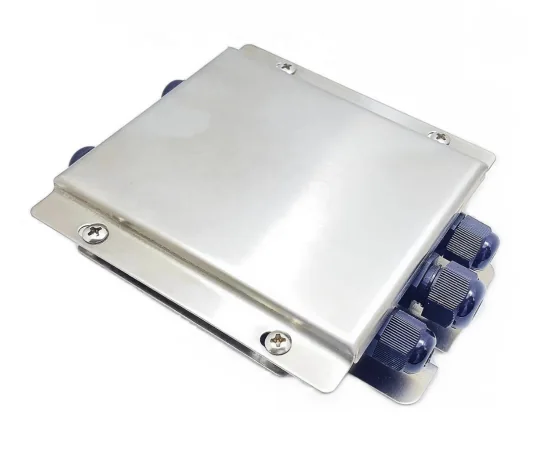

Sensor Enclosures

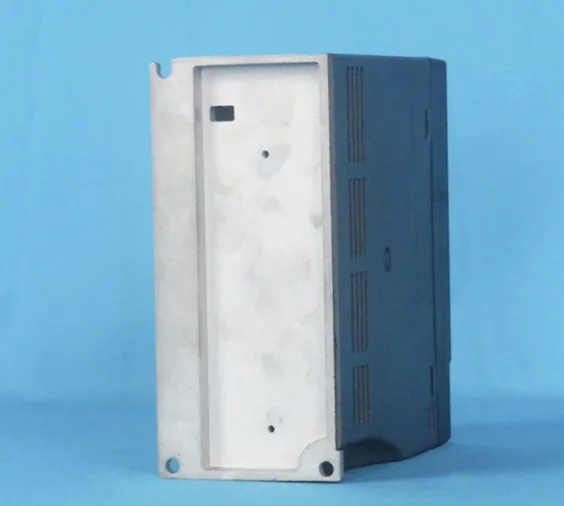

Electronic Control Housings

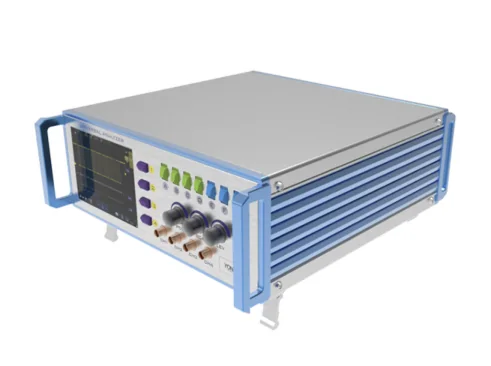

Laboratory Equipment Cavities
Start your project
Ready to machine your parts?
Upload your drawing and get a manufacturability review and quotation from our team.
